High Brightness Outdoor Rental Led Screen Displays With 43264 Dots/㎡ Physical Density
Quick Details:

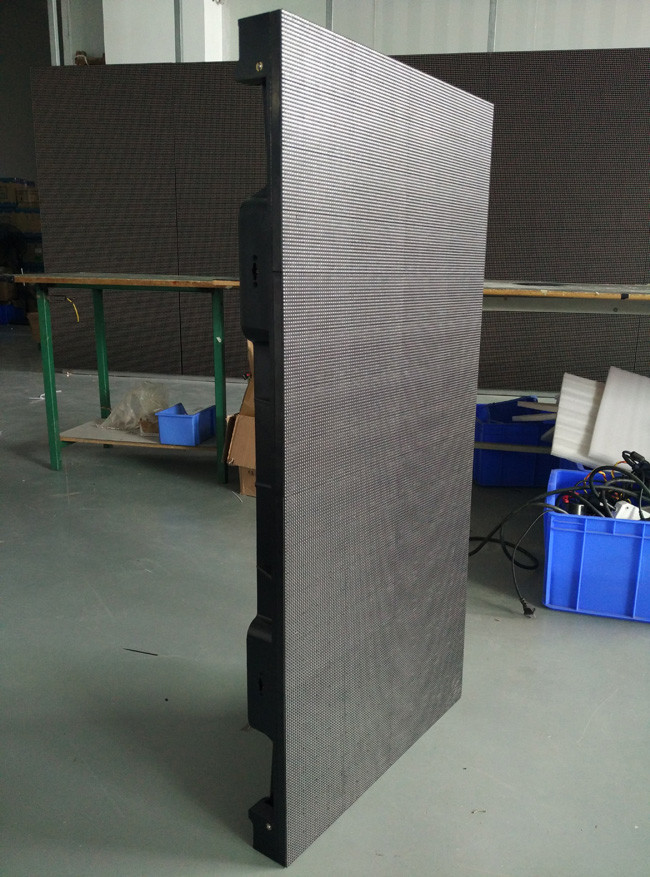

500mm*1000mm Die casting aluminum cabinet, light & Convenient and easy for tranportation
More than 5500cd / square meters brightness & Adjusted refresh rate
Easy to install, eaay to maintance, light weight, good appearance.
2-3 years warranty for our products and life time maintance
Nova/LINSN control system or wireless control system
Specifications:
| led module parameter |
| Technical parameters | UNIT | parameters Values |
| Pixel pitch | mm | 4.81 |
| module size | mm | 250*250 |
| Physical density | dots/㎡ | 43264 |
| Pixel configuration | RGB | 1,1,1 |
| Driving method | | Constant current 1/13scan |
| Led lamp | Smd | 2727 |
| module resolution | dots | 52*52 |
| Module weight | Kg | 0.53 |
| Module port | | HUB75 |
| Module consumption | W | 25 |
| led display parameter |
| Viewing angle | Deg. | H120 V120 |
| Viewing distance | m | 5-50 |
| Maximum power | W/㎡ | 900w |
| Frame Frequency | Hz | ≥60 |
| Refresh frequency | Hz | ≥1500 |
| Brightness | cd/㎡ | ≥5500 |
| Working environment temperature | 0C | -40~60 |
| Display working voltage | VAC | 220V±15%/110V±15% |
| Gray scale/color | | ≥16.7M color |
| Input signal | | RF S-Video RGB etc |
| Control system | | Nova/Linsn control system |
| Mean free error time | hours | ＞5000 |
| life time | hours | ＞100,000 |
| Lamp failure frequency | | ＜0.0001 |
Features:
1.Ultra-thin & ultra-light
2.Die casted AL cabinets, high precision with seamless splicing
3.Standard cabinet size: 500x1000mm, convenient for area calculation
4.Highly effective & quick for transportation and screen assembling
5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6.Special buckles structural connection between the cabinets,don’t need other tools
7.Cabinets are in common use for standard modules,shorten production cycle
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
Four main reasons why our customer choose us
1. We are led display manufacturer for many years, quality is guaranteed
2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level
3. Professional sales and technical team of 21 people to ensure perfect results
4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers
After-sell Service:
Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost
Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours
we will reponse you in 24 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.
FAQ:
1.Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2.Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 7-21 days after we receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
