P5 Outdoor LED Display Screen 6500cd/sqm SMD 3535 IP67
Premium Products
P5 Outdoor LED Display Screen 6500cd/sqm SMD 3535 IP67
1
2
3
4
5
6
Place of Origin :Guangdong, China
Model Number :p5
Brand Name :KAILITE
MOQ :2
Pixel pitch :5mm
Module size :160mm*160mm
Physical density :40000 dots/sqms
Pixel configuration :R/G/B 1,1,1
LED Chip :smd3535
Module resolution :32*32
Module power :35w/sqm
Max power consumption :400w/sqm
Viewing angle :H:120°;V:120°
Ingress protection :IP:67:Back IP:65
Cabinet size :640mm*640mm
Cabinet resolution :128*128
Cabinet weight :35KG
Driving method :Constant current 1/4 scan
Refresh frequency :≥1200Hz
Contact Now
p5 smd outdoor led screen, led chips smd 2121 rgb led, Kinglight smd led module p5 screen
As you know, the led technology has changed the world rapidly. As a good application of this technology, led screen has been used universually in different areas. They bring us wonderful visual and auditory experience, Making the world colorful and beautiful. SHENZHEN KAILITE OPTOELECTRONIC CO.,LTD, as a professional led display manufature, we provide complete and personalized led screen solutions for your case with reasonable price and guaranteed quality ! We are ready all the time, Enjoying your visiting and welcome to contact us !
Specifications 1.Personalized and complete solution for your case
2.factory price and good quality 3.Convenient and fast installation;Easy maintenance 3.2 years warranty
Product Description
what is the details of our P5 outdoor led display?
specification for P5 Outdoor LED display screen
module parameters
Pixel pitch
mm
5
module size
mm
160*160
Physical density
dots/sqms
40000
Pixel configuration
R/G/B
1,1,1
LED Chip
smd3535
Module resolution
32*32
Module power
w/sqm
35
Max power consumption
w/sqm
400
Viewing angle
H:120°;V:120°
Option distance
m
5-35
Ingree protection
IP:67:Back IP:65
screen parameters
cabinet material and structure
standard waterproof cabinet
Cabinet size
mm
640*640
Cabinet resolution
128*128
Control system
LINSN
cabinet weight
KG
35
Gray scale/color
≥16.7M color
Driving method
Constant current 1/4 scan
Frame frequenc
Hz
≥60
Refresh frequency
Hz
≥1200
Equilibrium brightness
cd/sqm
≥6800
Operation temperation/humidity
30℃~+45℃ 10%~95%
Input voltage
220V±10%/110V±10%
Brightnee contral
Manual/Atomatic
Input signal
RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Contral systerm
PCTV+DVI video card contral card fiber
MTBF
hours
>5,000
Life time
hours
>100,000
Lamp failure frequency
<0.0001

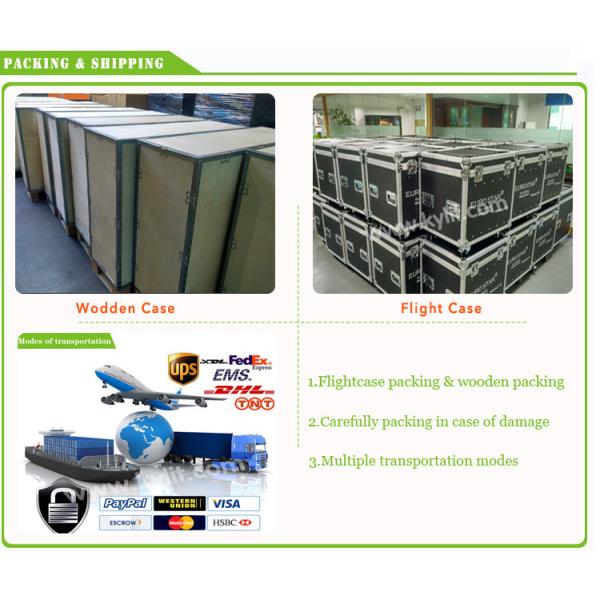

Packaging & Shipping
Why choose us
Four main reasons why our customer choose us
1. We are led screen manufacturer for many years, quality is guaranteed
2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level
3. Professional sales and technical team of 15 people to ensure perfect results
4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers
Company Information
Certifications
FAQ
FAQ
1.Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2.Are you factory? and your warranty?
yes we are 10 years factory, 2 years warranty and lifetime maintenance
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 15-25 days after receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea
